QUICK CONNECT ||  HERITAGE FUSION II

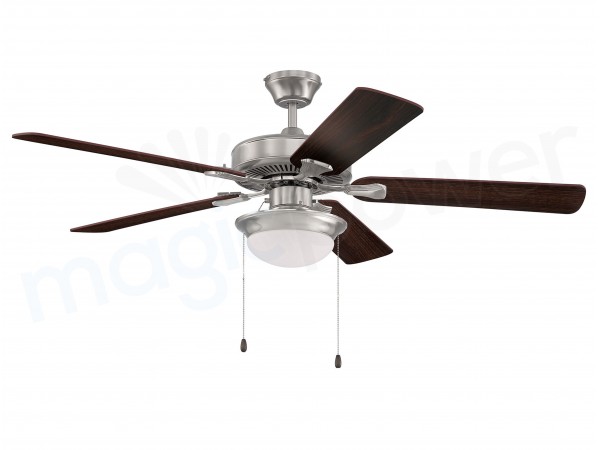

The five-blade fan features a white opal glass shade and a 19W dimmable LED module.Energy savings and maintenance benefits for the home.The integrated LED light kit offers versatile lighting options.

PRODUCT DIMENSIONS

A: 17-1/2"   B: 10-2/5"   C: 11"

FEATURES

● 52 inch Blade Sweep, 5 Blades, QUICK CONNECT

● Premium Silicone Steel Motor 153 x 16 mm

● 12 Degree Blade Pitch

● 4.5" Downrod

● Triple Capacitor for Quiet Operation

● 19W Integrated LED 3000K 90CRI 1600 Lumen Dimmable Light

● Pull Chain Included - Fan Speed and Light

● Reversible 3-Speeds

SPEC SHEET

● Average Airflow CFMave: 3265

● Energy Use Wave: 37

● Estimated Yearly Energy Cost($): 10

● AirflowEfficiency (CFM/W): 89

● Airflow at high speed(CFM): 4516.59

● RPM/Low: 68-72 (Amps: 0.21, Watts: 10.52)

● RPM/High: 171-179(Amps: 0.499, Watts: 59.82)
